Tss Wholesale 18g Cc #9 Tss Tungsten Shot Ball Super Shot, Metric
accuracy grade carbide round ball.
Tungsten carbide balls are also called cemented carbide balls, bearing balls or just
simply carbide balls.
The applications of tungsten carbide balls are extremely broad,
such as: precise bearing balls, instruments, meters, pen, spraying
machines, pumps, machinery parts, valve seals, brake pump,
extruding hole, oil, hydrochloric acid lab, hardness measuring
instrument, fishing gear, with heavy, ornamented, finished, and
some other high-end industry!
High hardness and dimensional stability make tungsten carbide balls
the preferred choice for precision hydraulic valves, high-load
bearings, inertial navigation systems, ball screws, linear bearings
in sideways, gauging and checking instruments, and meters. Tungsten
carbide balls are also used for balloting, to work-harden and
improve fretting fatigue strength.
Tungsten carbide balls are standard for Rockwell testing, and for
Brinell testing of materials in the range of 444-627 HB.

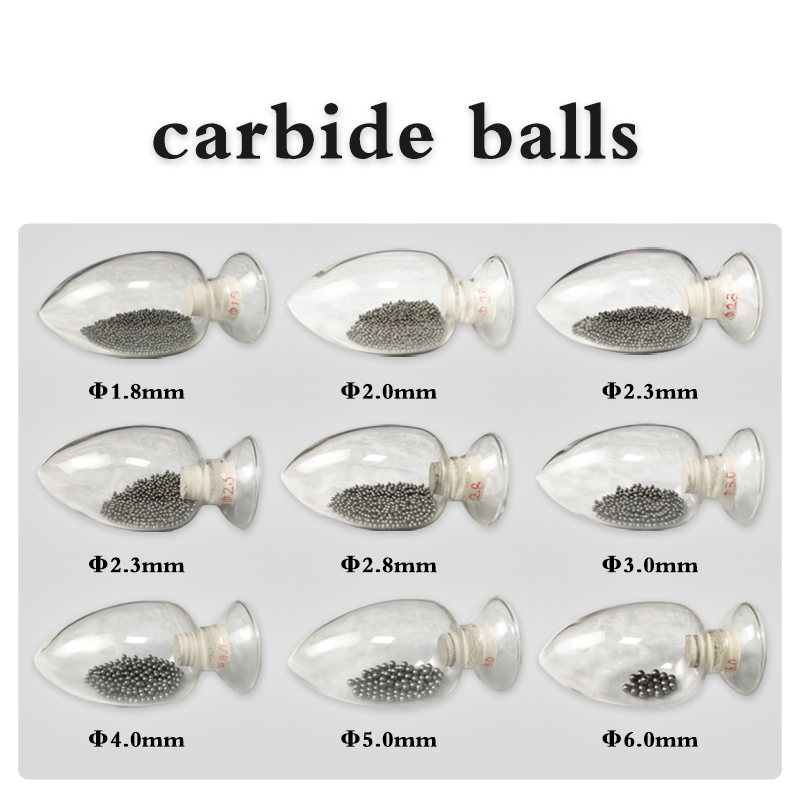

Tungsten Carbide Balls Characteristics
Tungsten carbide balls are ideal for applications where extreme
hardness must be accompanied by high resistance to wear and impact.
They are well-suited to elevated temperatures, corrosion, humidity,
abrasion, and poor lubrication conditions.
Tungsten Carbide Balls Mechanical Properties
• Ultimate tensile strength 220,000 psi
• Ultimate compressive strength 643,000 psi
• Transverse rupture strength 228,000 psi
• Modulus of elasticity 98,000,000
• Density (approx.) 0.54 lb./in.
• Specific gravity 14.85-15.5
• Electrically conductive slightly magnetic
• Low thermal expansion rate
Tungsten carbide balls from Chinatungsten Online are tested using a
gage that is accurate to ±0.0001 (grades 10, 15 and 25) to insure
conformance with standards, as well as individual customer quality
requirements. Tungsten carbide balls can be polished into extremely
high precision, so it also has a wide use as bearing balls.
The process of making tungsten carbide balls
Tungsten Super Shot Tungsten alloy hunting shot also called tss
shot which is used as the shot of shotgun. A shotgun is a firearm
that is usually designed to be fired from the shoulder. The shot
pellets from a shotgun spread upon leaving the barrel and the power
of the burning charge is divided among the pellets, which means
that the energy of any one ball of shot is fairly low. In a hunting
context, tungsten alloy hunting shot makes shotguns useful
primarily for hunting birds and other small games.
Super quality high density tss Tungsten super shot factory supply
Tungsten ball/shot/beads/spheres for hunting
18-18.5g density non-toxic tss tungsten huning shot on sale

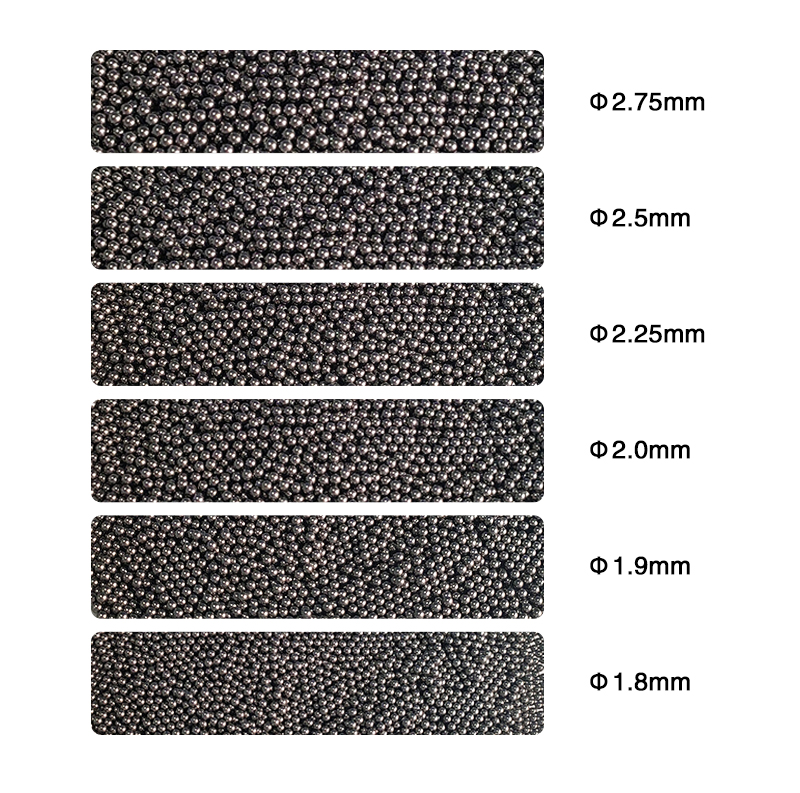

We have dia 2.0mm,2.25mm,2.75mm,4.5mm,5.0mm,7.0mm,10.0mm in stock
now!!!
Material:90,93,95,97WNiFe,WNiCu

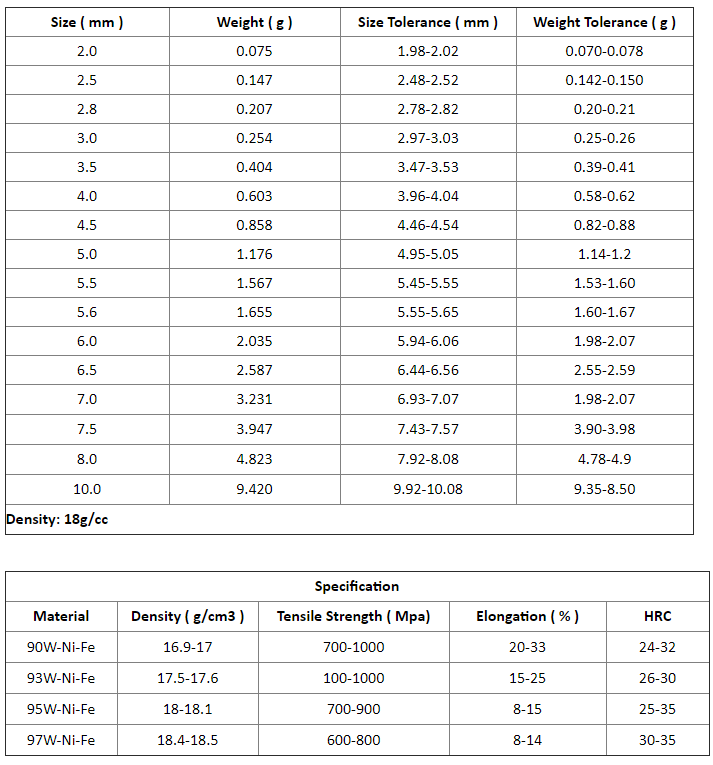

Diameter: 1.8MM, 2.0MM, 2.25MM, 2.75MM, 3MM, ~10.0MM (Customized
your Need)
Density: 11g/cc, 13g/cc, 15g/cc and 18g/cc,18.5g/cc.
Composition: Most WNiFe, others will be customized
Surface: metal luster, polished.
Shape:Ball,shot,sphere,beads,cylinder,cube,block etc.
Application:tss hunting etc.
1. Tungsten
alloy shot is very dense and small in volume, which means it can be used in
fields requiring small but heavy parts.
2. Counterweights in golf clubs, fishing weights, counterweights
for military defense,equipment, counterweights, prefabricated
fragments, oil logging.
3. Also some fields in precision industry, such as mobile phone
vibrator, clock cube, self-winding watches, anti-vibration toll
holders, flywheel weihts, etc.

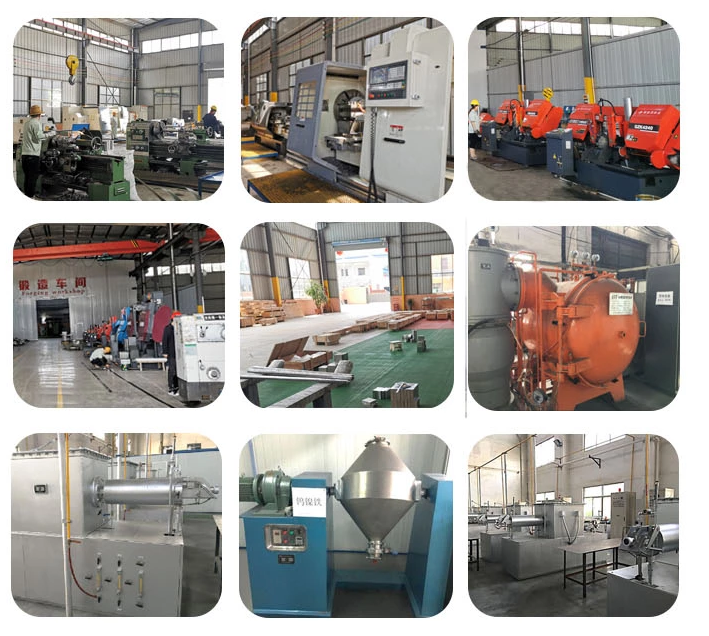

Workshop & Equipment
Our company has high pricision equipment,excellent
technology,professional sales and ater-sales team. In recent
years,our company has introduced a seried of advanced equipment
including sintering furnace,rolling mill,annealing furnace.
Delivery and packing
